VK28V200W DC-DC
Power Converter
TRI PWR introduces 18-36V to 28V, Isolated 200W DC-DC Converter in high power density form factor for critical applications.
Complete in-house design enables product modifications to suit individual needs (MOQ required).
Contact us for detailed test report and full specifications.
Trusted partners for pilot testing

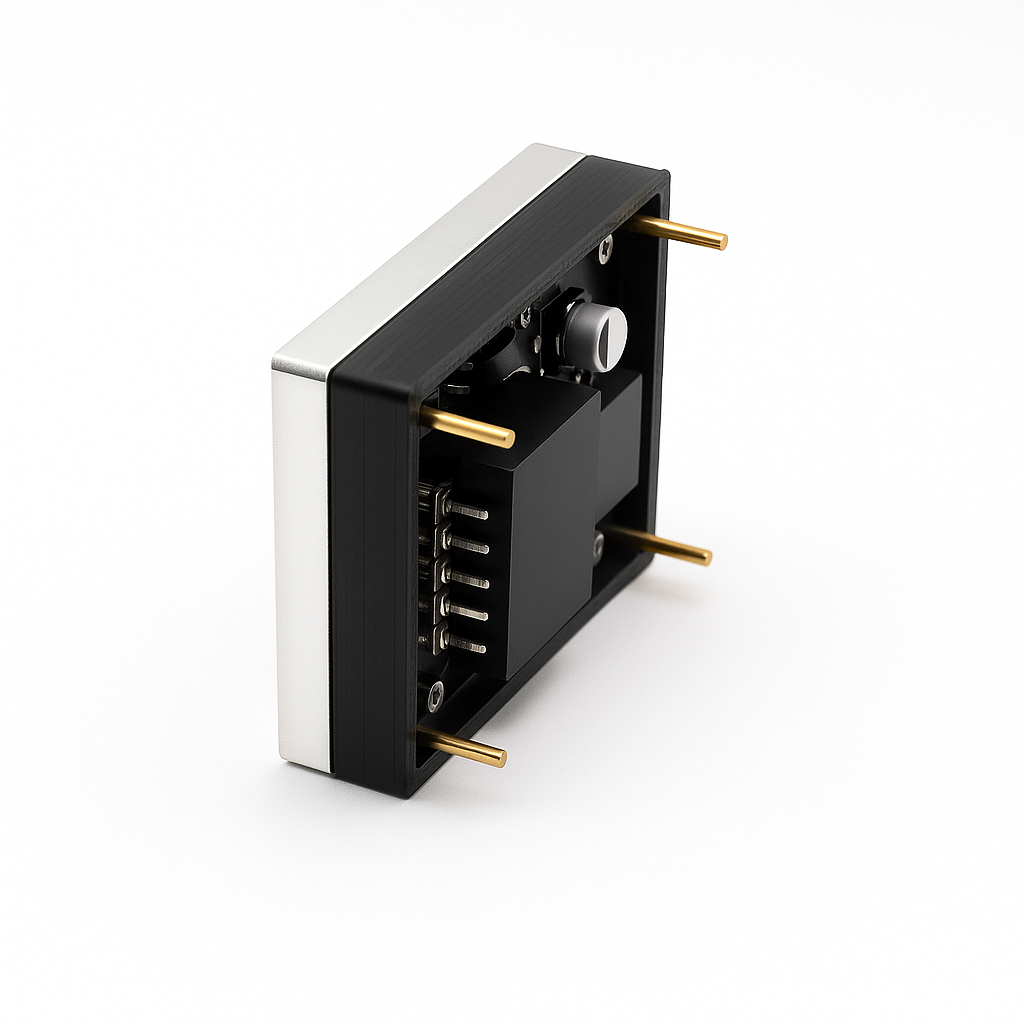

Complete Mechanical Protoype
Working closely with local partners, TRI PWR offers design and fabrication of complete mechanical solution for low volume DC/DC converters. The solution includes
- Design and fabrication of Aluminium heat sink
- 3D printed enclosure
- Use of thermal interface materials
- Potting compound for vibration and protection of electronics
Electrical Specification
| Parameter | Minimum | Typical | Maximum | Units |
|---|---|---|---|---|
| Input voltage | 18 | 24 | 36 | VDC |
| Input current | 12 | A | ||
| Output voltage | 28 | VDC | ||
| Output current | 7.5 | A | ||
| Output power | 200 | W | ||
| Switching frequency | 570 | kHz | ||
| Nominal Efficiency Input voltage=24V Output power=100W (50% power) | 89.7 | % | ||
| Peak efficiency Input voltage=18V Output power=81W | 91.7 | % | ||
| Ambient operating temperature | -20 | 25 | TBD | C |
| Board size | 54x41x18 | mm | ||
| Power density | 82 | W/in³ |
